DESCRIPTION

Basic Info.

Model NO.	RGV-TF01
Material	Cast Iron
Connection Form	Flange
Pressure	Low Pressure
Actuator	Manual
Seal Surface	Wedge Gate Valve
Thread Position of Valve Rod	Outside Gate Valve
Usage	Regulation, Safety, Drain, Temperature Control, Flow Control
Standard	DIN
Color	Blue, Red, Green, Gray
Power	Bevel Gear/Hand Wheel/Electrical
Connection Type	Flange
Port Size	DN50-DN1200
Place of Origin	Tianjin China (Mainland)
Temperature of Media	Medium Temperature
Transport Package	Plywood or Wooden Box
Specification	CE, ISO. JIS. ANSI
Trademark	WDS / WORLDS/OEM
Origin	Tianjin China (Mainland)
HS Code	8481804090
Production Capacity	6000 Tons/Year

Product Description

Detailed Description:

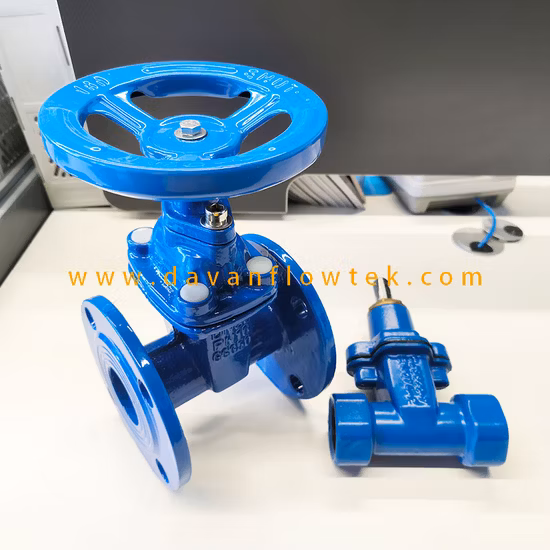

Series	Non-rising stem/Rising stem resilient seated gate valve
Size:	DN40-DN1200
Design standard:	GB/T 12232-2005 DIN3352, EN593, MSS SP-67
Pressure standard:	GB/T 13927-1992, API598
Face to face:	DIN3202 F4, F5, BS5155
Flange standard:	DIN2532, DIN2533
Body:	CI/DI/WCB/ALB/CF8/CF8M
Disc:	DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
Stem:	SS416/SS304/SS431/17-4PH
Seat:	NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(/PTFE
Suitable temperature:	-10~90
Medium:	Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.

Product Feature:flat style seatThe overall package gluecorrosion-resistantdifficult to fragmentationthree "O" ring sealflexible wedge offers superior tightness of seats and freedom from sticking.pressure seal design
Lightweight
**COMPANY INTRODUCTION

**Company Goal : OEM service for world-famous valve brand.

**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc

**Dimension Measurement &Inspection

**Assembly Workshop

**Packaging

**Certificates -- CE ISO WRAS ACS certificates
